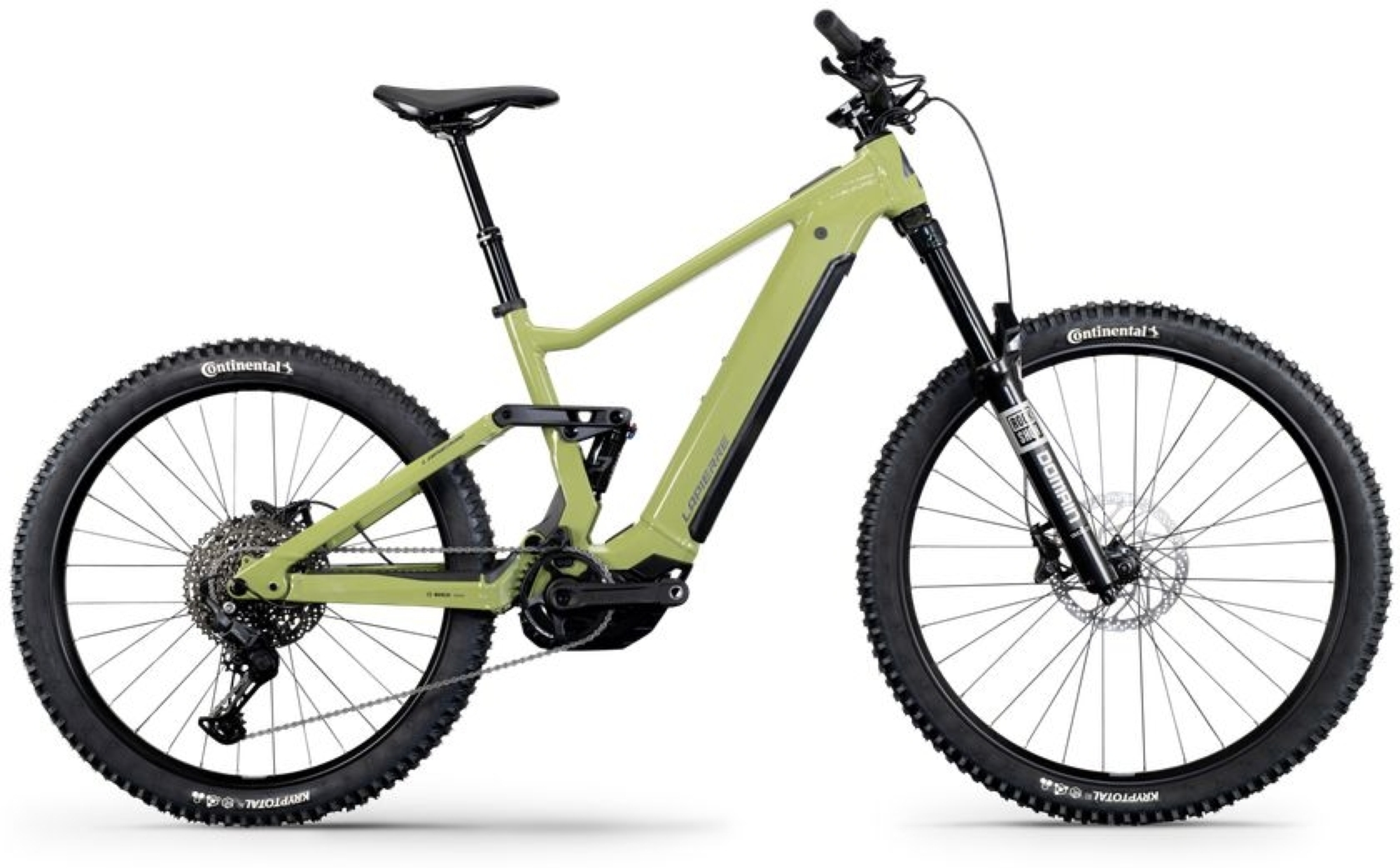

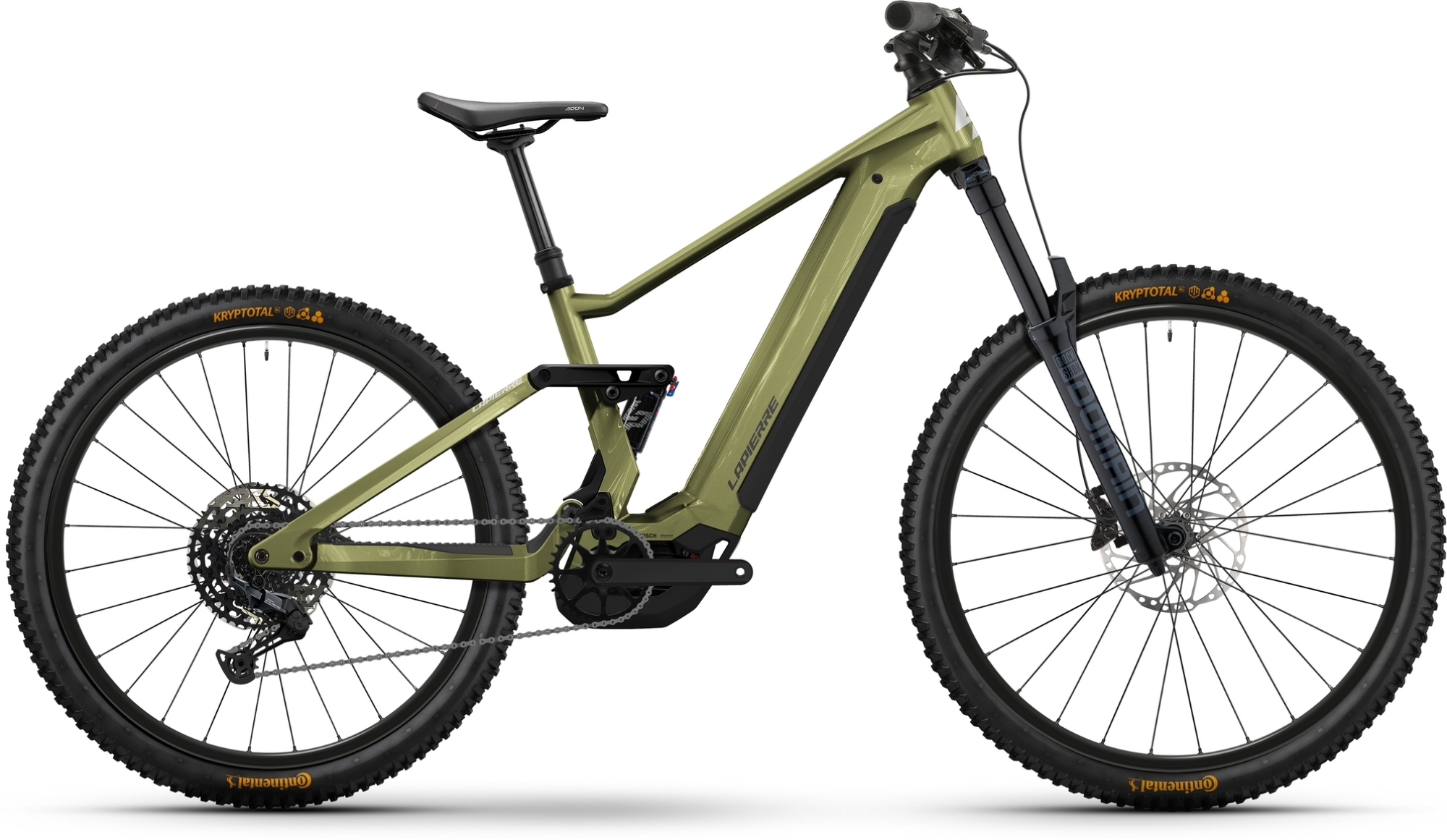

Lapierre OVERVOLT AM 5.8 2025

Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
170 mm
Fourche:
Rockshox, Domain Gold Isolator R 15×110 29″ 170 mm
Cadre:
Suprême 5 alloy, Aluminium, Homme
Amortisseur:
Lapierre, Shock 205×60 mm Trunnion/30×8 mm
Cintre et Selle
Handlebar Diameter:
35 mm
Handlebar Material:
Aluminium
Handlebar Rise:
30
Handlebar Width:
800 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
130 mm,150 mm,170 mm
Stem Length:
35 mm,45 mm
Poignée:
Lapierre, grips small diameter
Cintre:
Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Jeu de direction:
Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Selle:
Selle Royal, Vivo
Tige de Selle:
JD, Dropperpost, YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Potence:
Lapierre, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Composants E-bike
Battery Capacity:
800 Wh
Battery Location:
Downtube
Motor Torque [nm]:
85 Nm
Motor Location:
Center
Batterie:
Bosch, Powertube Horizontal 800Wh
Chargeur:
Bosch, Quick Charger, Charger 4A
Ecran:
Bosch, Kiox 300
Moteur:
Bosch, Performance line CX
Géométrie
Bottom bracket drop [mm]:
30 mm
Chain stay length [mm]:
460 mm
Fork offset [mm]:
585 mm
Fork total length [mm]:
44 mm
Head tube angle:
64.5 degrees,65 degrees
Head tube length [mm]:
110 mm,130 mm,150 mm
Reach [mm]:
433 mm,455 mm,475 mm,500 mm
Stack [mm]:
638 mm,641 mm,659 mm,678 mm
Seat tube angle:
76.5 degrees
Seat tube length [mm]:
390 mm,430 mm,460 mm,490 mm
Top tube length [mm]:
586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]:
1231 mm,1248 mm,1276 mm,1311 mm
Roues et composants de roues
Moyeu Avant:
Shimano, TC500, boost 15×110, 32H Centerlock
Moyeu Arrière:
Shimano, TC500, boost 12×148, 32H Centerlock, HG driver
Rim Description:
Ryde, Disc30 32H, 30-622 Black Anodized
Jante Arrière:
Ryde, Disc35 32H, 35-684 Black Anodized
Pneu:
Continental, Kryptotal F Enduro Soft, 60-622
Pneu Arrière:
Continental, Kryptotal R Enduro Soft
Taille de Roue:
29, 27.5
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Shimano, Frein à disque hydraulique, M4100 4 pistons, 203 mm
Frein Arrière:
Shimano, Frein à disque hydraulique, M4100 4 pistons, 203 mm
Levier de frein:
Shimano, BL-M4100
Disques de frein:
Shimano, SM-RT30 203 mm, Centerlock
Transmission
Cassette Teeth:
11-50T
Crankset Teeth:
34T
Crankset Type:
single
Number Of Gears:
11
Cassette:
Shimano, Cassette, CUES CS-LG400-11, HG
Chaîne:
Shimano, Chaîne, CUES LG500 9/10/11s
Pédalier:
E Thirteen, Helix Core + E13 Helix Core steel chainring 55CL
Dérailleur Arrière:
Shimano, CUES U6000 10/11s Shadow+
Vitesse:
Shimano, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Shimano, Triggershift, CUES U6000 11s
Selecteur de vitesse Droit:
Shimano, Triggershift, CUES SL-U6000-11R
